Timeline

The time diagram of the show (timeline) describes the conduct of each factor of the show at a definite moment. Timeline can be graphic or in text (as table).

In graphic timelines the informative cells (bars) contain the timelines and key events in the form of identification images. The necessary explanation and comments are written only where special attention needed. The graphic timeline gives the opportunity to look at show as if above, orienting in space and time of show.

0:00

2:00

4:00

6:30

8:20

11:20

14:00

17:30

20 min.

Timecode

0:00

2:00

4:00

6:30

8:20
Ship appears

11:20
Ship entering
the water area

14:00
Ship in the center
of the water area

17:30
U-turn of the ship

20 min

Timecode

Intro (fade in)

Lasers and light show

Fireworks from the bridge

“Scaret sails” of light

Final

Epilogue (fade out)

Start 1:30 am

Finish 1:50 am

Attention to the center of water area

To the bridge

To the center of water area

Brightness of sky

Salut from ship, 4 shootings

Entering water area

In the center of water area

U-turn

Jet ski

Jet ski

Paragliders

Paragliders

Water fountains
as background for the ship

Fire on top
of Rostral Columns

Fireworks from three barges,
400 m line

Water shells

Blinking effects

Fireworks from three barges,
400 m line

Golden fallen effects only

Three three-levels shootings
with 500 shots,
700 m line

Stepper effects,
400 m line

Stepper effects

Flame 12 m high

Laser beams,
slowly moving into water

Laser waves on the water area

Laser full power and wild

Freeze looks
to bump

Strobe lights on the sails

Dome above
the water area

Slow moving
for attention

All beam grids freeze

“Pirates of the Caribbean.
Skull and bones, H. Zimmer”

“The return overture”, R. Wakeman

“Time, Forward!”, G. Sviridov

“Carnival”, A. Glazunov

“1812 Overture”,
P. Tchaikovsky

The graphic timeline of the show Scarlet Sails – 2008

Vertical columns of graphic timeline show what is happening at the moment. Such visualization prevents the mistakes of composing and scaling of media sets when the spectators attention changes. It is also important for correct selection of color dominants and their compatibility by color temperature (for example, matching light base and firework of the first ground).

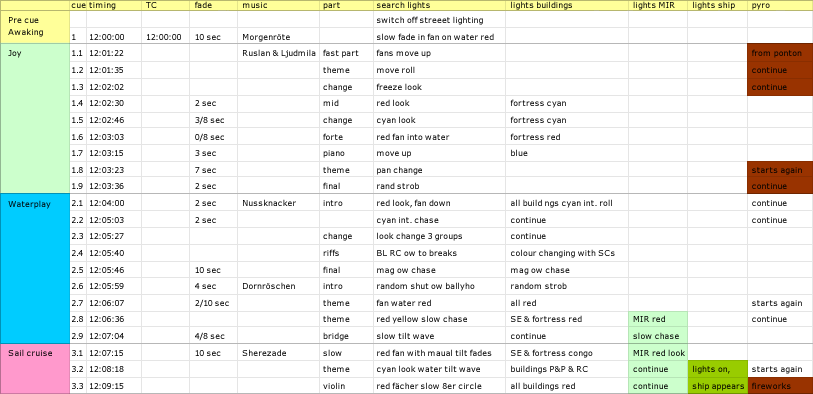

In the text timeline the cells contain the information for designers and programmers of different teams.

Text timeline of the show Scarlet Sails – 2008.xls, 28 KB
Authors: Dmitry Orlikov and Jerry Appelt
